| TECHNISCHE SPECIFICATIES |

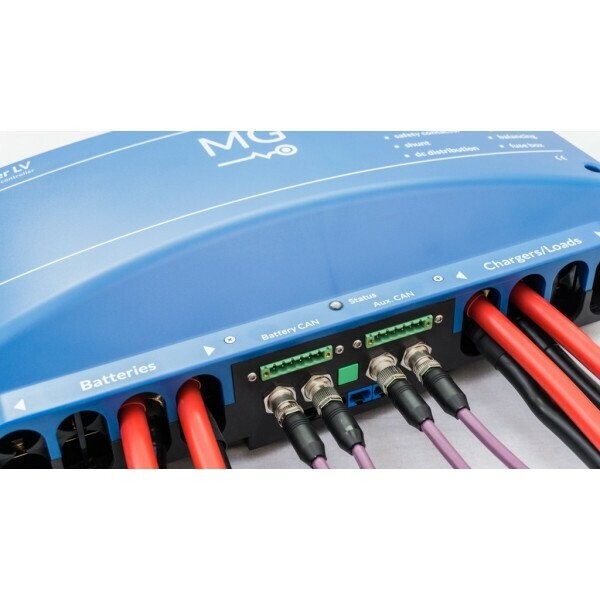

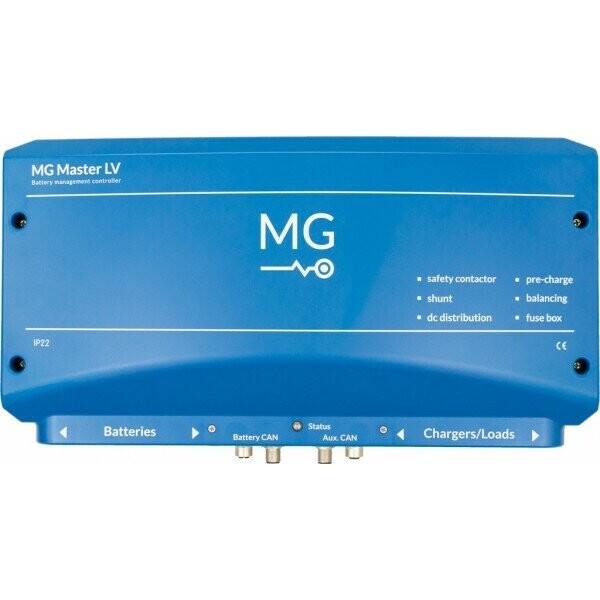

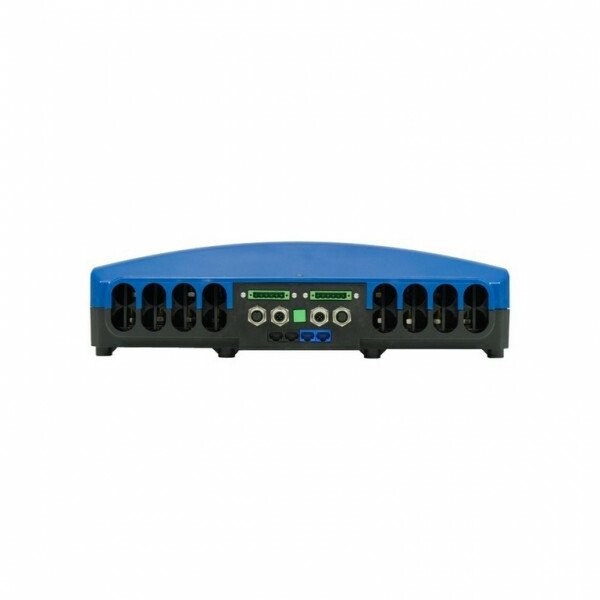

24-48 V 400 A MGMLV482400 |
| Voedingsspanningsbereik |
18 tot 58 VDC |
| Maximaal aantal aangesloten batterijen |
96 batterijmodules van het type LFP, HE, UHE, HP of 48 batterijmodules van het type RS |
| Stroomverbruik in stand-bymodus |
73 mW @ 26,2 V en 138 mW @ 52,4 V |
| Stroomverbruik in actieve modus |
8,7 W |
| Stroom van de hoofdveiligheidsmagneetschakelaar continu |
400 A |
| Communicatie |
CAN-Bus (Victron VE.CAN, NMEA2000, SMA) |
| EXTRA AAN/UIT POORTEN |
|
| Aux. output |
13,5 V / 1 A, short circuit protection, overcurrent protection |
| Allow-to-charge (geschakelde spanning) |
13,5 V / 1 A, short circuit protection, overcurrent protection |
| Allow-to-discharge (geschakelde spanning) |
13,5 V / 1 A, short circuit protection, overcurrent protection |
| Allow-to-charge (relaisuitgang) |
0,8 A @ 60 VDC, potentiaalvrij |
| Allow-to-discharge (relaisuitgang) |
0,8 A @ 60 VDC, potentiaalvrij |
| Programmeerbaar contact (relaisuitgang) |
0,8 A @ 60 VDC, potentiaalvrij |
| Extern statussignaal |
13,5V / 140mA bescherming tegen kortsluiting, overstroombeveiliging |
| Ingang noodstop (beschikbaar op M12 CAN-bus connectoren) |
Noodstop om de hoofdmagneetschakelaar vast bedraad te bedienen. |
| BEHUIZING |
|
| Materiaal |
ABS (versterkt) |
| Maten |
426 x 225 x 117 mm |
| Gewicht |
4,9 kg |
| Omgevingsinvloed |
|
| Bedrijfstemperatuurbereik |
-20 °C to 50°C |
| Vochtigheid |
Max. 95% (niet-condenserend) |
| Beschermingsklasse |
IP22 |
| NORMEN |
|
| EMC: Emissie |
EN-IEC 61000-6-3:2007/A1:2011/C11:2012 |
| EMC: Immuniteit |
EN-IEC 61000-6-1:2007 |
| Laagspanningsrichtlijn |
EN 60335-1:2012/AC:2014 |
| Goedkeuringen |
IEC-EN 62619 |
| RoHs |
EN 50581:2012 |
